Name:
Features:

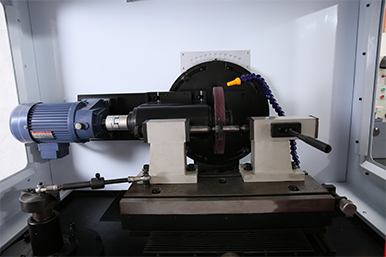

*注：机器图片仅供参考，实物随技术改革更新换代，解释权归公司所有
Note: Machine images for reference only. Actual products may be updated due to technical improvements. The company reserves the right of final interpretation.
Purpose:
Gear diameter：Φ20～Φ300mm
Workpiece mouds： 0.5～5
Honing wheel diameter：ф240mm
Honing wheel aperture：ф63.5mm
The workbench maximum distance：320mm
The workbench maximum stroke length：100mm
Rest swing Angle：±20°
Frequency control of motor speed by gear
motor spindle power ：0.75KW
Gear motor stroke power：0.55KW
Dimension：1400×1100×1650（L×W×H）
